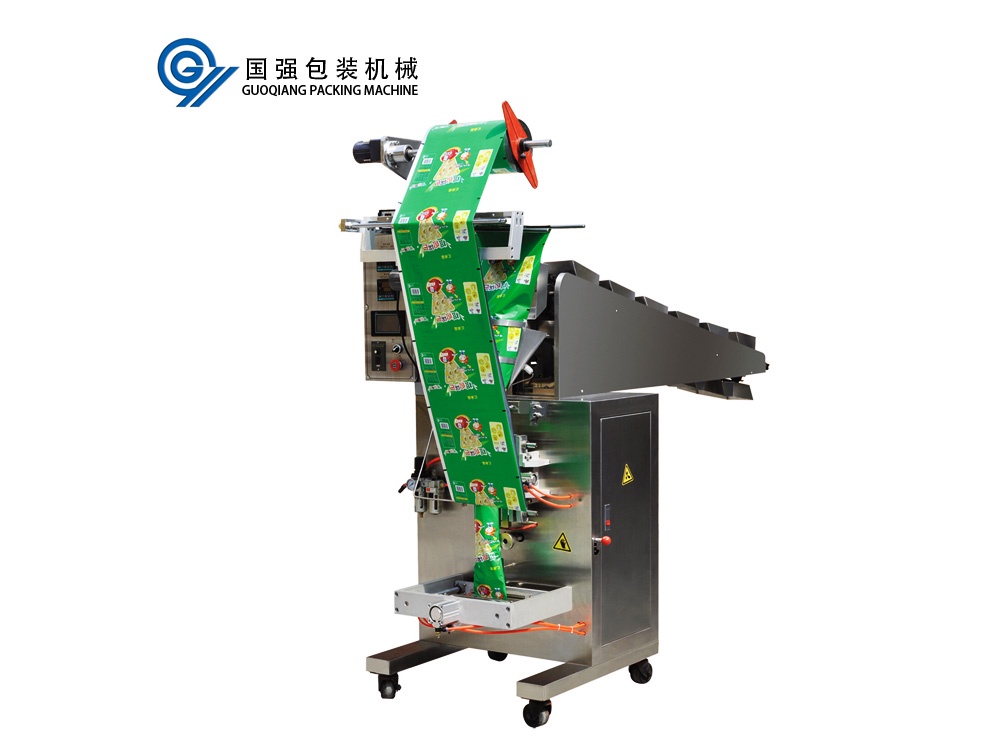

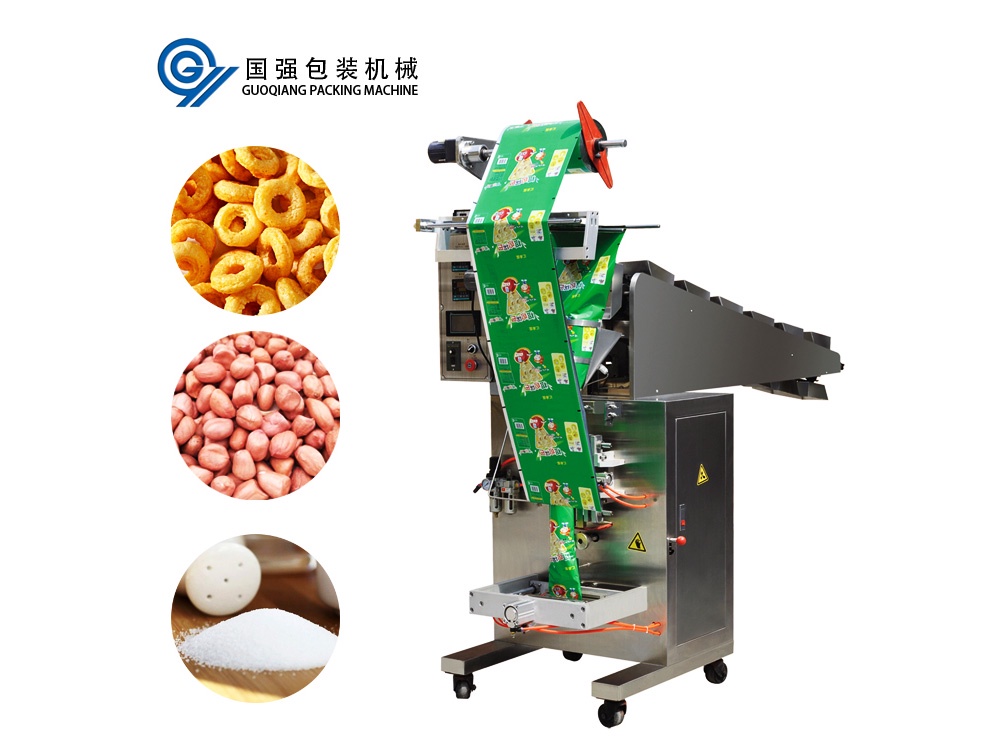

GQ-1000 Chain Bucket Packing Machine
Manual metering of this machine, suitable for packing of sticky, fragile, and slender food.

Product Details


Characteristics:

* Manual metering of this machine, suitable for packing of sticky, fragile, and slender food.

* Imported PLC full computer control system, human-machine interface, touch screen for easy and intuitive operation.

* Servo film transport system, accurate positioning, excellent performance of the whole machine, beautiful packing.

* Perfect automatic alarm protection function to minimize the loss.

* The machine can automatically complete the whole packing process of feeding, bag filling, and date printing by matching with the coding device.

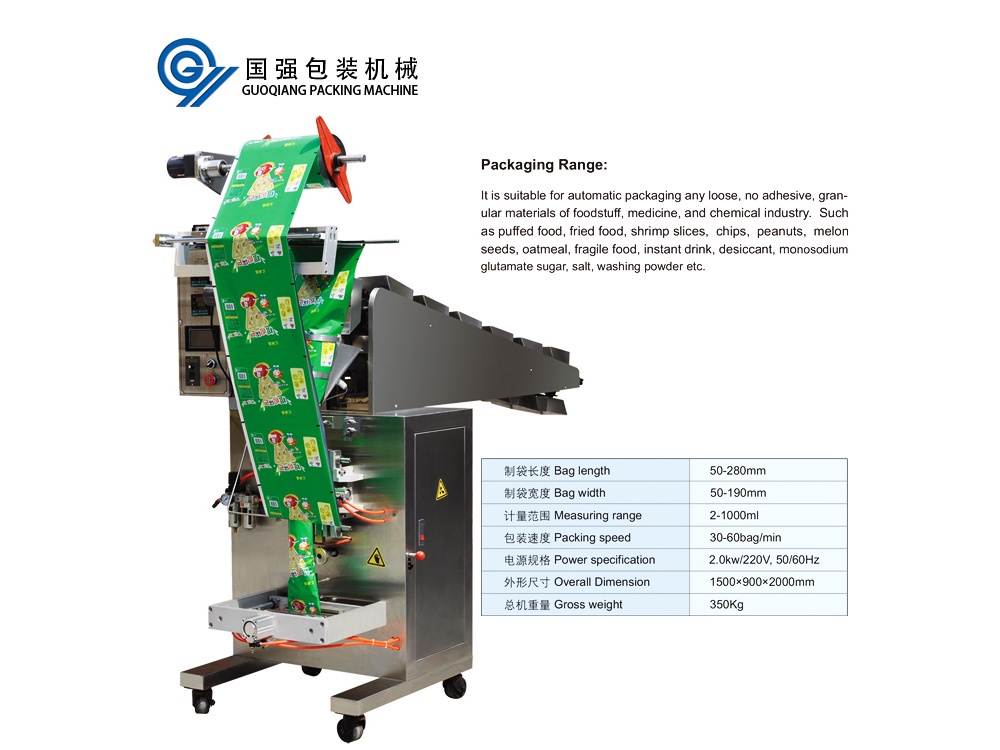

Packing range:

Suitable for automatic packing of non-loose, sticky and granular materials in food, medicine, and chemical products, such as packing of puffed food, fried food, shrimp sticks, potato chips, peanuts, melon seeds, cereals, crushed dry food noodles, punch, desiccant, monosodium glutamate, sugar, salt, laundry powder, etc.

Product Parameters

Technical Parameters:

ModelGQK-500 GQK-1000
Bag length50-160mm100-300mm
Bag width50-150mm100-200mm
Packing speed25-55bags/min25-45bags/min
Measuring range5-500ml10-1000ml
Power specification2.0KW/220V2.0KW/220V
Gross weight250kg350kg
Overall dimension900×700×1700mm1000×800×1900mm


Product Configuration

Spareparts accessories list

Name Quantity
Heating tube 4 pcs
Cutter 1 pc
Thermocouple 2 pcs
Coding machine word grain 1 set
Ribbon 2 rolls


SparepartsRandom tools

Name Quantity
Hexagonal wrench 1 set
Open-ended wrench 1 set
Brass brush 1 pc
Movable wrench 1 pc
Phillips screwdriver 1 pc
