Fully Automatic Intelligent Can Seamer (Standard Version) | LPE-FHV50S
The entire machine is servo-controlled, ensuring safer, more stable, and more intelligent operation. The turntable activates only when a can is detected, and its speed can be adjusted independently. If a deformed can jams the mechanism or a foreign object obstructs the turntable, the machine automatically shuts down; this effectively protects the equipment from damage and safeguards the operator. A simple one-touch reset clears the fault and resumes operation, significantly saving time and boosting production efficiency.

Product Details


1. The entire machine is servo-controlled, ensuring safer, more stable, and more intelligent operation. The turntable activates only when a can is detected, and its speed can be adjusted independently. If a deformed can jams the mechanism or a foreign object obstructs the turntable, the machine automatically shuts down; this effectively protects the equipment from damage and safeguards the operator. A simple one-touch reset clears the fault and resumes operation, significantly saving time and boosting production efficiency.

2. The sealing process is executed simultaneously by four rollers (comprising two sets of double-seaming wheels), ensuring a high degree of airtightness.

3. Highly versatile, the machine accommodates cans of various specifications, shapes, and materials, thereby meeting diverse production requirements and significantly reducing operating costs for the user. Furthermore, the can itself remains stationary during the sealing process—enhancing safety—making the machine particularly well-suited for handling fragile items and liquid products.

4. Featuring a high degree of automation—including automatic lid feeding and automatic sealing—the system substantially boosts production efficiency and lowers operational costs for the business.

5. Maintenance costs are low; the machine features a simple mechanical structure that is easy to operate and maintain. Its convenient serviceability minimizes production losses typically associated with downtime for repairs.

Product Parameters

1. Seaming Heads: 1

2. Seaming Rollers: 4 (2 First-Operation Rollers, 2 Second-Operation Rollers)

3. Seaming Speed: 20–55 cans/minute (Adjustable; varies depending on can material, size, and contents)

4. Can Height Range: 25–220 mm (Additional tooling/molds required for significant height variations)

5. Can Diameter Range: 30–110 mm (8-station configuration); 60–160 mm (6-station configuration)

6. Air Consumption: 150 L/minute

7. Operating Air Pressure: ≥ 0.6 MPa

8. Power Supply: Single-phase AC 220V, 50/60 Hz

9. Total Power: 1.7 kW

10. Net Weight: 330 kg (approx.); Gross Weight: 400 kg (approx.)

11. Conveyor Belt Height: 850 mm

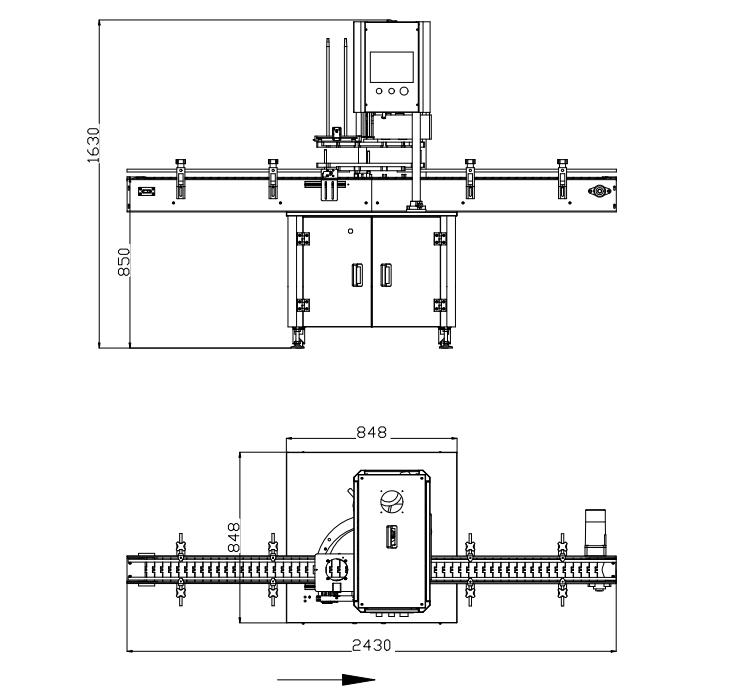

12. Equipment Dimensions: L 2430 × W 848 × H 1630 mm (approx.)

13. Wooden Crate Dimensions: L 1210 × W 960 × H 1730 mm (approx.)


Product Configuration

配置(标准配置,实际生产会有部分调整,按最终生产为准)

序号

No.

配件名称

Part name

品牌

Brand

产地

Origin



1

程序控制器

PLC

信捷

XINJIE

中国

China

XINJIE-PLC


2

触摸屏

Touch screen

信捷

XINJIE

中国

China

Touch screen-XINJIE


3

轴承

Seaming Bearings


中国

China

Bearings


4

变频器

Frequency converter

台达/西门子

DELTA/SIEMENS

台湾/德国

Taiwan/Germany

Frequency converter


5

光电传感器

Photoelectric sensor

西克/奥托尼克斯

SICK/AUTONIX

德国/韩国

Germany/Korea

Photoelectric sensor


6

接近传感器

Proximity detector

松下

PANASONIC

日本

Japan

Proximity detector


7

继电器

Relay

西门子

SIEMENS

德国

Germany

Relay


8

保险底座

Fuse base

施耐德

SCHNEIDER

法国

France

Fuse base


9

断路器

Breaker

施耐德

SCHNEIDER

法国

France

Breaker


10

按钮

Button

施耐德

SCHNEIDER

法国

France

Button


11

气动元件

Pneumatic component

亚德客

SYMTECH/AIRTAC

意大利/台湾

Italy/Taiwan

Pneumatic component


12

伺服电机

Servo motor

汇川

INOVANCE

中国

China

Servo motor


13

开关电源

Switch power

台达

DELTA

台湾

Taiwan

Switch power


14

输送带电机

Conveyor belt motor

台邦

VTV

台湾

Taiwan

Step motor


15

输送带电机变频器

Frenquency converter of conveyor belt motor

科肯

KEKEN

中国

China

Frenquency converter of conveyor belt motor


16

封口电机

Seaming motor

摩多利

MODUOLI

中国

China

Seaming motor


17

卷轮

Seaming roller

440A

利华包装

LPE

Seaming roller


18

转盘

Turntable

PP

利华包装

LPE

Turntable
