Fully Automatic Intelligent Can Seamer (Elite Edition) | LPE-FHV50E
The entire machine is servo-controlled, ensuring safer, more stable, and more intelligent operation. The turntable activates only when a can is present, and its speed can be adjusted independently. In the event of a jam—caused by a deformed can or a foreign object obstructing the turntable—the machine automatically shuts down. This effectively protects the equipment from damage and safeguards the operator. A single-button reset clears the fault and resumes operation, significantly saving time and boosting production efficiency.

Product Details


1. The entire machine is servo-controlled, ensuring safer, more stable, and more intelligent operation. The turntable activates only when a can is present, and its speed can be adjusted independently. In the event of a jam—caused by a deformed can or a foreign object obstructing the turntable—the machine automatically shuts down. This effectively protects the equipment from damage and safeguards the operator. A single-button reset clears the fault and resumes operation, significantly saving time and boosting production efficiency.

2. The sealing process is executed simultaneously by four rollers (comprising two sets), ensuring a high degree of airtightness. Manufactured in Taiwan using Japanese mold steel, these rollers feature high hardness and a high-gloss finish, guaranteeing seals that are flat, tight, and leak-proof, while offering an exceptionally long service life.

3. The system utilizes a world-renowned control platform—featuring a German Siemens PLC and German SICK sensors—to ensure consistent can sealing integrity and filling accuracy throughout the production process, thereby guaranteeing both product quality and operational safety.

4. Highly versatile, the machine accommodates cans of various specifications, shapes, and materials, adapting to diverse production requirements and significantly reducing operating costs for the user. Furthermore, the can itself remains stationary during the sealing process, enhancing safety and making the machine particularly well-suited for handling fragile items and liquid products.

5. Boasting a high degree of automation, the machine performs automatic lid feeding and sealing, thereby substantially boosting production efficiency and lowering operational costs for the business.

6. Maintenance costs are low; the equipment features a simple mechanical structure that is easy to operate and maintain. Its convenient serviceability minimizes production losses typically associated with downtime for repairs.

Product Parameters

Product Specifications:

1. Number of Sealing Heads: 1

2. Number of Seaming Rollers: 4 (2 first-operation rollers, 2 second-operation rollers)

3. Sealing Speed: 20–55 cans/minute (Adjustable; varies depending on can material, size, and contents)

4. Sealing Height: 25–220 mm (Additional tooling/molds may be required for a wide range of heights)

5. Sealing Diameter: 30–110 mm (8-station configuration); 60–160 mm (6-station configuration)

6. Air Consumption: 150 L/minute

7. Operating Air Pressure: ≥ 0.6 MPa

8. Power Supply: Single-phase AC 220V, 50/60 Hz

9. Total Power: 1.7 kW

10. Net Weight: 330 kg (approx.); Gross Weight: 400 kg (approx.)

11. Conveyor Belt Height: 850 mm

12. Main Exterior Material: 304 Stainless Steel

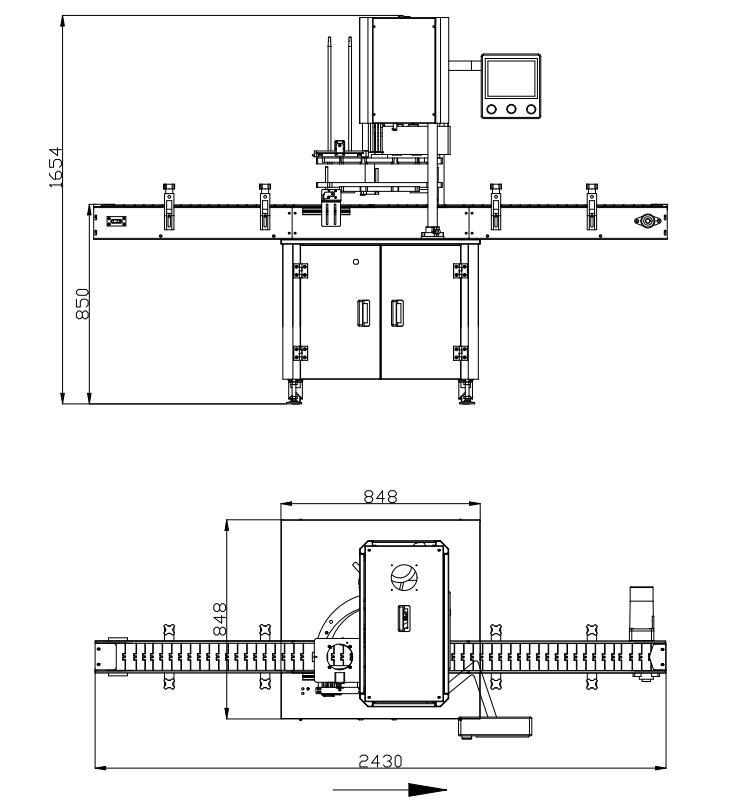

13. Overall Dimensions: Length 2430 × Width 848 × Height 1654 mm (approx.)

14. Wooden Crate Dimensions: Length 1210 × Width 960 × Height 1730 mm


Product Configuration

配置(标准配置,实际生产会有部分调整,按最终生产为准)

序号

No.

配件名称

Part name

品牌

Brand

产地

Origin



1

程序控制器

PLC

西门子

SIEMENS

德国

Germany

PLC


2

触摸屏

Touch screen

西门子

SIEMENS

德国

Germany

Touch screen


3

封口头轴承

Seaming Bearings

NSK

日本

Japan

Bearings


4

变频器

Frequency converter

台达/西门子

DELTA/SIEMENS

台湾/德国

Taiwan/Germany

Frequency converter


5

光电传感器

Photoelectric sensor

西克/奥托尼克斯

SICK/AUTONIX

德国/韩国

Germany/Korea

Photoelectric sensor


6

接近传感器

Proximity detector

松下

PANASONIC

日本

Japan

Proximity detector


7

继电器

Relay

西门子

SIEMENS

德国

Germany

Relay


8

保险底座

Fuse base

施耐德

SCHNEIDER

法国

France

Fuse base


9

断路器

Breaker

施耐德

SCHNEIDER

法国

France

Breaker


10

按钮

Button

施耐德

SCHNEIDER

法国

France

Button


11

气动元件

Pneumatic component

亚德客

SYMTECH/AIRTAC

意大利/台湾

Italy/Taiwan

Pneumatic component


12

伺服电机

Servo motor

汇川

INOVANCE

中国

China

Servo motor


13

开关电源

Switch power

台达

DELTA

台湾

Taiwan

Switch power


14

输送带电机

Conveyor belt motor

台邦

VTV

台湾

Taiwan

Step motor


15

输送带电机变频器

Frenquency converter of conveyor belt motor

英捷思

INJS

中国

China

Frenquency converter of conveyor belt motor


16

封口电机

Seaming motor

摩多利

MODUOLI

中国

China

Seaming motor


17

卷轮

Seaming roller

协建

HSIEH

台湾

Taiwan

Seaming roller


18

转盘

Turntable

PE

利华包装

LPE

Turntable




随机工具袋清单:

序号

配件/工具名称

数量

备注

1

钥匙

2

设备门钥匙

2

保险丝

1

配件

3

勾型扳手

1

工具

4

六角匙

1

工具

5

链片

2

易损件

6

电眼调节螺丝刀

2

工具

7

气管转接头SL6-M5

2

配件

建议随机可以购买的配件:

序号

配件名称

数量

单价

1

压头

1

400-700元不等,看口径

2

封卷轮

4个(2个一道,2个二道)

400

3

同步带

2

50

4

电机皮带

1

20

5

输送带链板

2

55

6

封口头弹簧

2

5

7

下盖器分盖片

4

30

8

封口头平面轴承

4

50

9

电磁阀

4

80

10

前拦气缸

1

75

11

托盘气缸

1

200

12

下盖气缸

1

70

13

变频器

1

1350
