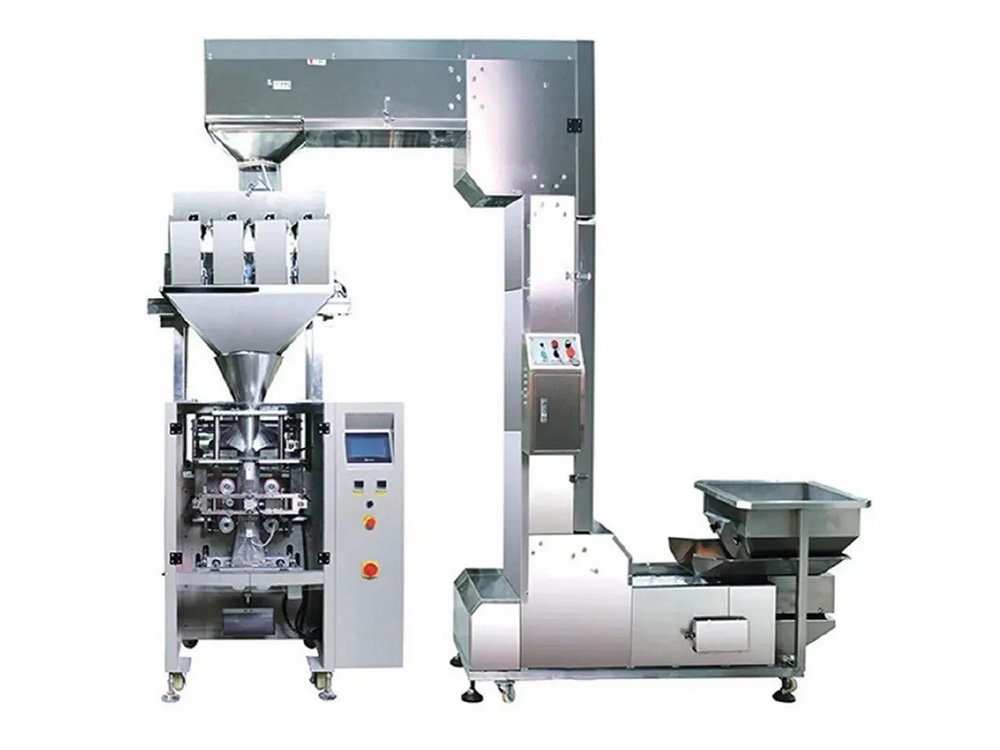

GQ-520 Automatic Powder Packing Machine

GQ-520 Automatic Powder Packing Machine

0086 15966668725

990613750@qq.com

Product Details

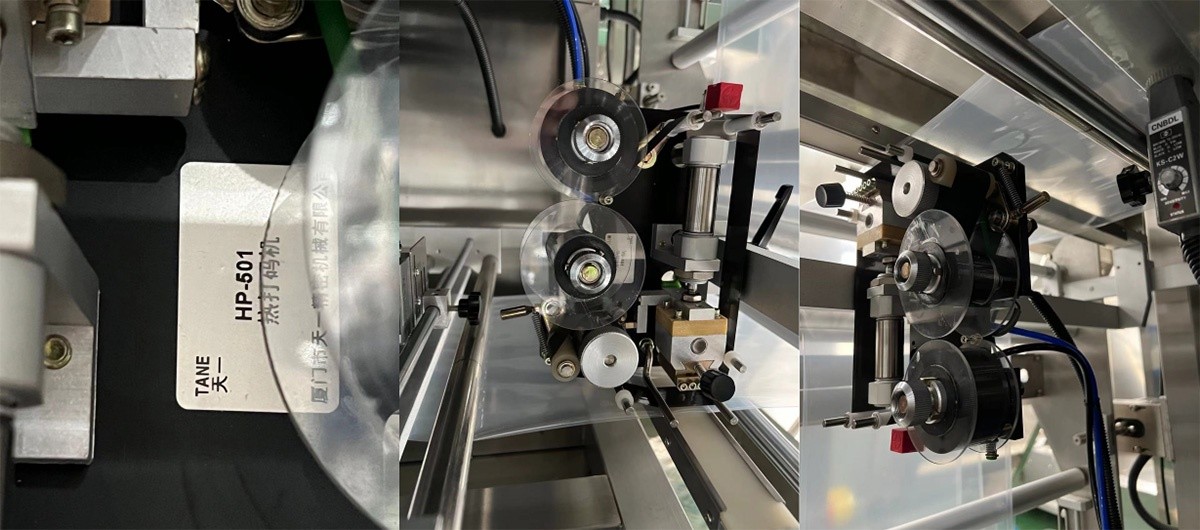

Date Printer

HP-501 Date Printer

Product Parameters

Name	GQ-520
Max film width	520mm
Bag width	90(min)-250(max)mm
Bag length	100(min)-450(max)mm
Packing Speed	10-60 bag/min
Accuracy	≤±1-2gr
Power Specification	3.0kw/240V
Air consumption	0.4m³/min 0.6Pa
Overall dimension	143012001700mm
Gross weight	650kg
Film Type	POPP/CPP,POPP/VMCPP,BOPP/PE, PET/AL/PE(3 layers film),NY/PE,PET/PET
Bag Making Type	Pillow type bag, standing bag, punch device, Link-bag device
Thickness of film	0.04-0.10mm

Product Configuration

Free Accessories and tools with the 420/520 machine

Name	Type	Amount
Horizontal seal heat piece	/	2 pics
Vertical seal heat piece	/	2 pics
Drawing web	/	1 pic
Winding belt	/	1 volume
Digits characters	Cooperate with printer	1 box
Z Cutting knife	/	1 set
Inner hexagon level	4-14mm	1 set
Movement spanner	12-14	1 set
Copper brush	/	1 set
Heating rods	/	2 Pics
Heating rings	/	2 Pics
Thermocouple	/	1 Pics
Print heat piece	/	1 Pics
Print Ribbon	/	1 Pics

The main components and brand of this machine as following:

Number	Name	Brand	Country/Area
1	Touch sensitive screen	WEINVIEW	TAIWAN
2	PLC	MITSUBISH	JAPAN
3	Servo motor	PANASONIC	JAPAN
4	Horizontal cylinder	SMC	JAPAN
5	Vertical cylinder	SMC	JAPAN
6	Cutting cylinder	SMC	JAPAN
7	Two units system	SNS	TAIWAN
8	Solid state relay	FOTEK	TAIWAN
9	Intermediate state relay	OMRON	JAPAN
10	Photoelectric eye	AUTONICS	KOREA
11	Power	MW	TAIWAN
12	Transducer	HUICHUAN	SHENZHEN
13	Winding motor	TAIBANG	TAIWAN
14	Thermometer control	YA TAI	SHANGHAI
15	Electromagnetic vale	JINQI	TAIWAN
16	Code printer	TIANYI	XIAMEN
17	Access switch	YANGMING	TAIWAN
