Fully Automatic Vacuuming, Nitrogen-Filling, and Can Sealing Machine LPE-FVC20
The seaming motor utilizes a servo motor, offering controllable and adjustable seaming speeds with superior precision, thereby guaranteeing a 100% airtight seal for every can.

Product Details

1. The seaming motor utilizes a servo motor, offering controllable and adjustable seaming speeds with superior precision, thereby guaranteeing a 100% airtight seal for every can.

2. Residual oxygen levels are kept below 3%; this ultra-low oxygen environment acts as a safeguard for product freshness, effectively extending the product's shelf life.

3. The seaming process is executed simultaneously by four seaming rollers (comprising two sets), ensuring a high degree of airtightness. Manufactured in Taiwan using Japanese mold steel, these rollers feature high hardness and a high-gloss finish, guaranteeing a flat, compact, and leak-proof seal. They boast an exceptionally long service life, capable of seaming up to 10 million cans.

4. The system incorporates internationally renowned components, including a German Siemens PLC control system and German SICK sensor technology. This ensures stable can sealing and precise filling accuracy throughout the production process, thereby safeguarding both product quality and operational safety.

5. Highly versatile, the machine accommodates cans of various specifications, shapes, and materials, adapting to diverse production requirements and significantly reducing operating costs for the user. Furthermore, the can remains stationary during the seaming process—enhancing safety—making the machine particularly well-suited for handling fragile items and liquid products.

6. Featuring a high degree of automation—including automatic lid feeding and automatic seaming—the system significantly boosts production efficiency and lowers operational costs for the business.

7. Maintenance costs are low; the machine features a simple mechanical structure that is easy to operate and maintain. Its convenient serviceability minimizes production losses typically associated with downtime for repairs.



Product Parameters

1. Number of Sealing Stations: 1

2. Number of Seaming Rollers: 4 (2 First-Operation Rollers, 2 Second-Operation Rollers)

3. Sealing Speed: 5–7 cans/minute (Varies depending on can material, size, contents, and residual oxygen requirements)

4. Sealing Height: 50–190 mm

5. Sealing Diameter: 50–127 mm

6. Air Consumption (Compressed Air): 20 L/min

7. Operating Air Pressure: ≥ 0.6 MPa

8. Nitrogen Consumption: 25 L/min

9. Residual Oxygen Level: ≤ 3%

10. Power Supply: 3-Phase AC 380V, 50/60 Hz

11. Total Power: 2.85 kW

12. Net Weight: 650 kg (approx.) | Gross Weight: 713 kg (approx.)

13. Conveyor Belt Height: 850 mm

14. Main Exterior Material: 304 Stainless Steel

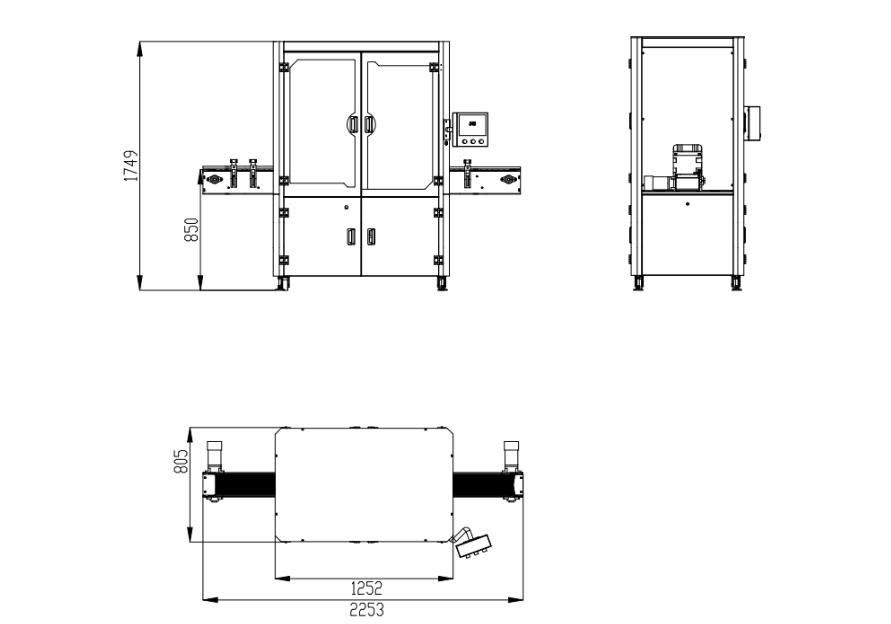

15. Equipment Dimensions: L 2253 × W 805 × H 1749 mm (approx.)

16. Packing Crate Dimensions: L 1730 × W 1040 × H 1970 mm


Product Configuration

配置(标准配置,实际生产会有部分调整,按最终生产为准)

序号

No.

配件名称

Part name

品牌

Brand

产地

Origin



1

程序控制器

PLC

西门子

SIEMENS

德国

Germany

PLC


2

触摸屏

Touch screen

西门子

SIEMENS

德国

Germany

Touch screen


3

轴承

Bearings

NSK

日本

Japan

Bearings


4

光电传感器

Photoelectric sensor

西克

SICK

德国

Germany

Photoelectric sensor


5

接近传感器

Proximity detector

松下

PANASONIC

日本

Japan

Proximity detector


6

继电器

Relay

西门子

SIEMENS

德国

Germany

Relay


7

保险底座

Fuse base

施耐德

SCHNEIDER

法国

France

Fuse base


8

断路器

Breaker

施耐德

SCHNEIDER

法国

France

Breaker


9

按钮

Button

施耐德

SCHNEIDER

法国

France

Button


10

气动元件

Pneumatic component

亚德客

SYMTECH/AIRTAC

意大利/台湾

Italy/Taiwan

Pneumatic component


11

封口伺服电机

Servo motor

汇川

INOVANCE

中国

China

Servo motor


12

开关电源

Switch power

台达

DELTA

台湾

Taiwan

Switch power


13

输送带电机

Conveyor belt motor

台邦

VTV

台湾

Taiwan

Step motor


14

输送带电机变频器

Frenquency converter of conveyor belt motor

科肯

KEKEN

中国

China

Frenquency converter of conveyor belt motor


15

卷轮

Seaming roller

协建

HSIEH

台湾

Taiwan

Seaming roller


16

启动三片式球阀

九木

JIUMU

中国

China

JIUMU


17

真空电机

万经

WANJING

中国

China

真空电机


18

接触器

施耐德

SCHNEIDER

法国

France

接触器


19

磁性开关

亚德客

AIRTAC

台湾

Taiwan

磁性开关


20

热过载继电器

施耐德

SCHNEIDER

法国

France

热过载继电器
