Product Details
1. Servo-driven volumetric filling ensures high precision and stability during the filling process.
2. Automated filling streamlines production, offering peace of mind and significantly reducing labor requirements.
3. The fluid-contact components of the gear pump are constructed from 316 stainless steel, while the gears are made of PEEK—a food-grade material known for its exceptional wear resistance and high-temperature tolerance—and feature a self-cleaning function.
4. The filling valves are manufactured from 316 stainless steel and undergo high-gloss polishing to prevent dripping; an optional anti-drip suction feature is available. These valves boast an exceptionally long service life, ensuring worry-free operation and minimal after-sales support needs.
5. The system utilizes a world-renowned control platform—featuring a Siemens PLC and SICK sensor technology—to guarantee stable container sealing and filling accuracy throughout the production cycle, thereby ensuring both product quality and operational safety.
6. Highly versatile, the machine accommodates containers of various specifications, shapes, and materials, adapting effortlessly to diverse production requirements and significantly reducing operating costs for the user.
7. With a high degree of automation, the filling volume can be adjusted with a single touch, dramatically boosting production efficiency and lowering operational expenses for the business.
8. Maintenance costs are kept to a minimum thanks to the equipment's simple mechanical structure, which makes it easy to operate and maintain. This ease of service reduces production losses typically associated with downtime for repairs.
Product Parameters
1. Filling Stations: 6
2. Applicable Materials: Oils, alcoholic beverages, syrups, and fruit juices (must be free of solid particles).
3. Filling Speed: 20–60 containers/minute (varies depending on container material, size, capacity, and material properties).
4. Filling Height: 25–300 mm (For containers with narrow openings, a bottle-clamping mechanism is required; cost: 6,000 RMB per set).
5. Filling Diameter: 20–200 mm.
6. Air Consumption: 150 L/minute
7. Operating Air Pressure: ≥ 0.6 MPa
8. Power Supply: Single-phase AC 220V, 50/60 Hz
9. Total Power: 5.0 kW
10. Net Weight: 400 kg (approx.) | Gross Weight: 520 kg (approx.)
11. Conveyor Belt Height: 850 mm
12. Main Exterior Material: #304 Stainless Steel

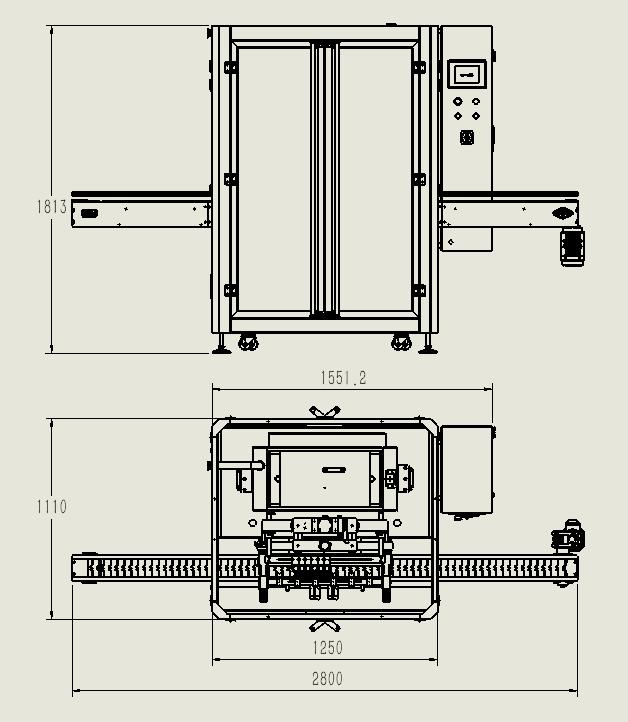

13. Equipment Dimensions: Length 2800 × Width 1110 × Height 1800 mm (approx.)
14. Wooden Crate Dimensions: Length 2850 × Width 1150 × Height 1850 mm (approx.); actual dimensions may vary.
Product Configuration
Configuration table (standard configuration, subject to partial adjustments during actual production, and final production shall prevail)
List of random tool bag:
Suggested accessories that can be purchased randomly:
