Fully Automatic Dual-Head Can Seamer -LPE-FHV80
The entire machine is servo-controlled, ensuring safer, more stable, and more intelligent operation. The turntable activates only when a can is detected, and its speed can be adjusted independently. In the event of a jam—caused by a deformed can or a foreign object obstructing the turntable—the machine automatically shuts down. This effectively protects the equipment from damage and safeguards the operator. A single-button reset clears the fault and resumes operation, significantly saving time and boosting production efficiency.

Product Details


1. The entire machine is servo-controlled, ensuring safer, more stable, and more intelligent operation. The turntable activates only when a can is detected, and its speed can be adjusted independently. In the event of a jam—caused by a deformed can or a foreign object obstructing the turntable—the machine automatically shuts down. This effectively protects the equipment from damage and safeguards the operator. A single-button reset clears the fault and resumes operation, significantly saving time and boosting production efficiency.

2. Two seaming heads operate simultaneously for highly efficient canning speeds. Each seaming head utilizes a set of four seaming rollers (two for the first pass and two for the second) to complete the seal, ensuring a high degree of airtightness. Manufactured in Taiwan using Japanese mold steel, these components feature high hardness and a high-gloss finish, guaranteeing seals that are flat, tight, and leak-proof. They boast an exceptionally long service life, capable of sealing up to 5 million cans.

3. The system incorporates internationally renowned components, including a Siemens (Germany) PLC control system and SICK (Germany) sensor technology. This ensures stable can sealing and filling precision throughout the production process, thereby guaranteeing both product quality and operational safety.

4. Highly versatile, the machine accommodates cans of various specifications, shapes, and materials, adapting to diverse production requirements and significantly reducing operating costs for the user. Furthermore, the can itself remains stationary during the seaming process—enhancing safety—making the machine particularly well-suited for handling fragile items and liquid products.

5. Featuring a high degree of automation—including automatic lid feeding and automatic seaming—the system dramatically boosts production efficiency and lowers operational costs for the business.

6. Maintenance costs are low; the machine features a simple mechanical structure that is easy to operate and maintain. Its convenient serviceability minimizes production losses typically associated with downtime for repairs.

Product Parameters

1. Number of Seaming Stations: 2

2. Number of Seaming Rollers: 8 (4 First-Operation Rollers, 4 Second-Operation Rollers)

3. Seaming Speed: 40–90 cans/minute (Adjustable; dependent on can material, size, and contents)

4. Seaming Height: 25–220 mm (Additional tooling required for significant height variations)

5. Seaming Diameter: 30–110 mm (Tooling replacement required for different diameters)

6. Air Consumption: 300 L/minute

7. Power Supply: Single-phase AC 220V, 50/60 Hz

8. Total Power: 2.2 kW

9. Net Weight: 580 kg (approx.) | Gross Weight: 650 kg (approx.)

10. Conveyor Belt Height: 850 mm

11. Main Exterior Material: 304 Stainless Steel

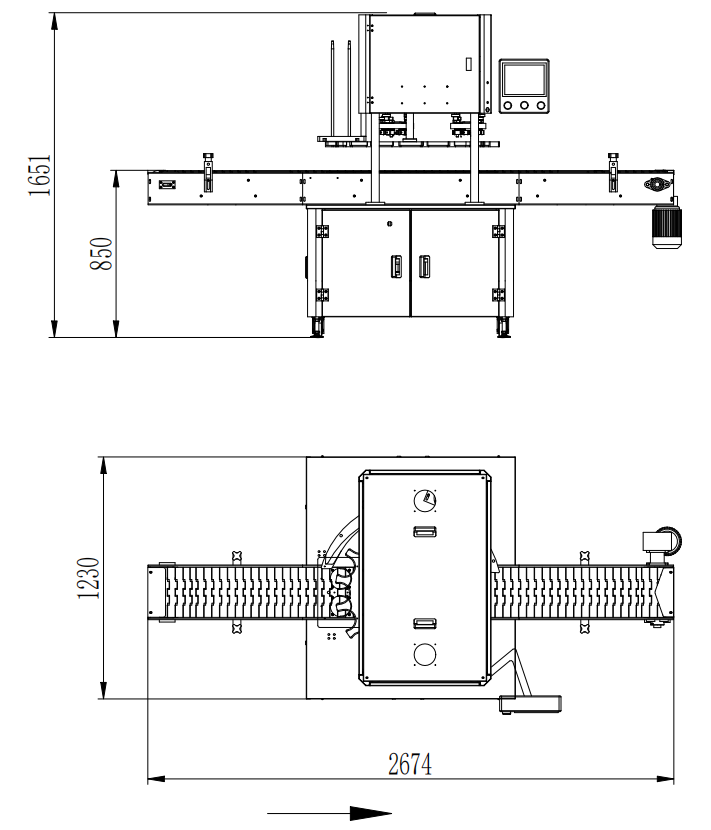

12. Equipment Dimensions: L 2674 × W 1230 × H 1651 mm (approx.)

13. Packing Crate Dimensions: L 1530 × W 1410 × H 1670 mm


Product Configuration

配置(标准配置,实际生产会有部分调整,按最终生产为准)

序号

No.

配件名称

Part name

品牌

Brand

产地

Origin



1

程序控制器

PLC

西门子

SIEMENS

德国

Germany

PLC


2

触摸屏

Touch screen

西门子

SIEMENS

德国

Germany

Touch screen


3

轴承

Bearings

NSK

日本

Japan

Bearings


4

变频器

Frequency converter

台达/西门子

DELTA/SIEMENS

台湾/德国

Taiwan/Germany

Frequency converter


5

光电传感器

Photoelectric sensor

西克

SICK

德国

Germany

Photoelectric sensor


6

接近传感器

Proximity detector

松下

PANASONIC

日本

Japan

Proximity detector


7

继电器

Relay

西门子

SIEMENS

德国

Germany

Relay


8

保险底座

Fuse base

施耐德

SCHNEIDER

法国

France

Fuse base


9

断路器

Breaker

施耐德

SCHNEIDER

法国

France

Breaker


10

按钮

Button

施耐德

SCHNEIDER

法国

France

Button


11

气动元件

Pneumatic component

亚德客

SYMTECH/AIRTAC

意大利/台湾

Italy/Taiwan

Pneumatic component


12

伺服电机

Servo motor

汇川

INOVANCE

中国

China

Servo motor


13

开关电源

Switch power

台达

DELTA

台湾

Taiwan

Switch power


14

输送带电机

Conveyor belt motor

台邦

VTV

台湾

Taiwan

Conveyor belt motor


15

输送带电机变频器

Frenquency converter of conveyor belt motor

科肯

KEKEN

中国

China

Frenquency converter of conveyor belt motor


16

封口电机

Seaming motor

摩多利

MODUOLI

中国

China

Seaming motor


17

卷轮

Seaming roller

协建

HSIEH

台湾

Taiwan

Seaming roller


18

转盘

Turntable

PE+铝合金

利华包装

LPE

Turntable
